Metal Mesh Curtains

Metal mesh curtain is a new type of metal curtain for modern interior decoration. It is also called metal coil drapery or chain mesh curtains. Wire mesh curtain not only has the flexibility and foldability of traditional cloth curtains but also has the gloss of metal wires. Compared with the traditional curtain, metal coil drapery has excellent fireproof property, ventilation, and light transmission, thus it has a longer service life. It has the characteristics of dynamic fashion and metal texture, which will make the high-end hotels, restaurants, opera houses and exhibition halls more magnificent.

Main Specifications of Metal Mesh Curtain

  • Material: Stainless steel, copper, aluminum, aluminum alloy, etc.
  • Wire diameter: 0.5 mm – 1.2 mm
  • Aperture size: 3 mm – 20 mm
  • Weight: 1.7 kg/m2 – 6 kg/m2 (depending on shape and material chosen).
  • Open area: 40% – 85%
  • Surface treatment: Baking varnish, anodic oxidation, acid washing.
  • Color: Original metallic color or spray into other colors. (Silver, brass-yellow, ultra-black, Chinese red, purple, bronze, pearl gray, etc.)

Metal mesh curtain begins with a base metal wire available in varieties of steel, aluminum, brass, copper, or stainless steel. Wire material and gauge impact weight, functionality, and aesthetics – so we can help you select the best material and gauge based on your project’s requirements.

Specification Reference
MaterialWire diameterApertureThicknessWeight
Carbon steel0.9mm6.3mm3/16″5.8mm4.0kg/㎡
1.2mm8.5mm1/4″7.1mm6.0㎏/㎡
1.0mm6.8mm1/4″6.5mm5.5㎏/㎡
Stainless steel1.0mm8.4mm1/4″6.7mm3.5㎏/㎡
1.2mm6.8mm3/16″6.5mm5.8㎏/㎡
1.2mm8.5mm1/4″7.1mm5.0㎏/㎡
Aluminium-magnesium alloy1.2mm8.5mm1/4″7.1mm2.0㎏/㎡
1.2mm6.8mm3/16″6.5mm2.5㎏/㎡
1.0mm5.5mm3/16″5.5mm1.7㎏/㎡
2.0mm12mm1/2″12.0mm3.0㎏/㎡
More product requests please contact us for customization

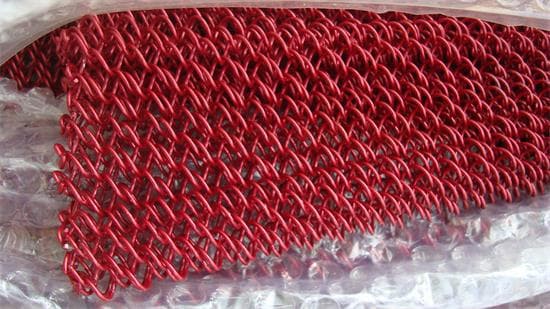

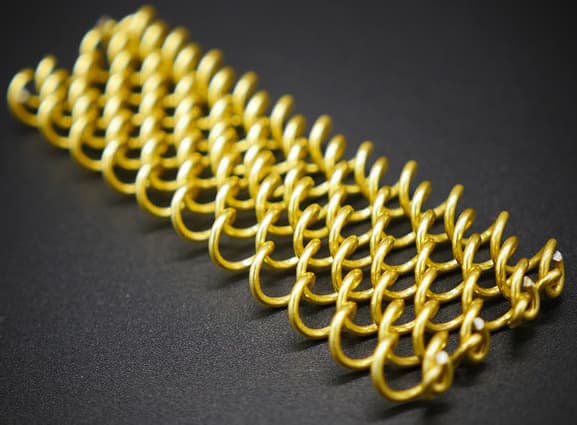

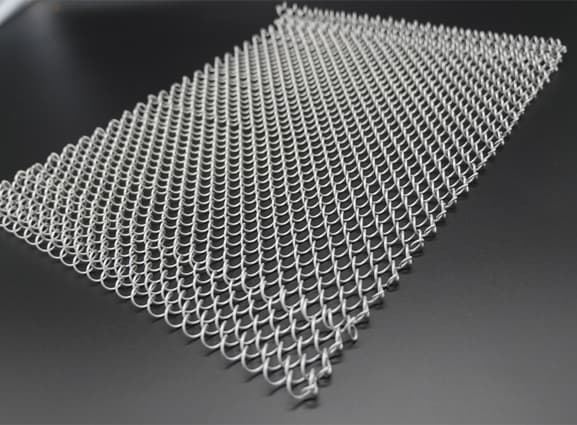

Products Show

The winding wire adds fullness, the woven coil adds fluency and the corrugated curtain adds mystery. Aside from these, the metal coil curtain also owns various colors and sizes. Gathered, metal coil drapery gives people an effective impression. You need only to slide the tabs onto the rod. as a result of its particularly free-flowing effect, supple and sensual drape to make it hang just right.

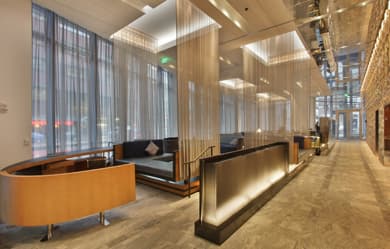

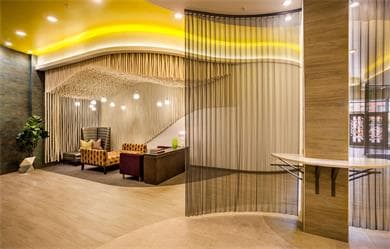

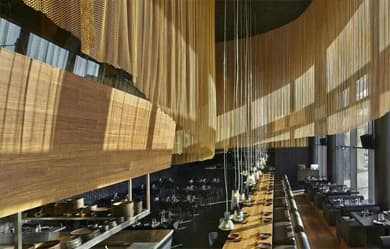

Application Display of Metal Mesh Curtain

When used as decoration, metal mesh curtain looks like a whole piece, which differs from the strip-type chain link curtain. Due to the luxurious and practical features, the metal mesh curtain has been chosen as today’s decoration style by much more designers. It has much application such as window treatment, architectural drapery, shower curtain, space divider, ceilings. It is applied broadly in exhibition halls, living rooms, restaurants, hotels, bathroom. Followings are the usage effect of metal mesh curtain. In addition, the cost performance of the metal coil curtain is more suitable than chain link curtain and chainmail curtain.
Metal mesh curtain has a great many functions, such as Wall decoration, Metal mesh shower curtain, Space divider, Natural blast protection, Lamp shade, Door curtain, Fireplace mesh curtain, Building facade, Sound insulation, Security gate.
In view of such functions, metal coil curtain can be applied in many places, such as Balcony, Exhibition hall, Window, Museum，Concert malls, Building elevation, Bathroom, Hotel, Office building, Fireplace.

Feature

  • Light diffusion and good ventilation.
  • UV resistant and flame resistant.
  • Beautiful appearance and various colors.
  • Versatility and decorative effects.
  • Aesthetic appeal and functionality.
  • Finishes are beautiful and resilient.
  • Color never fading and paint never dropping.
  • Gorgeous and high-end.
  • Durability and flexibility.

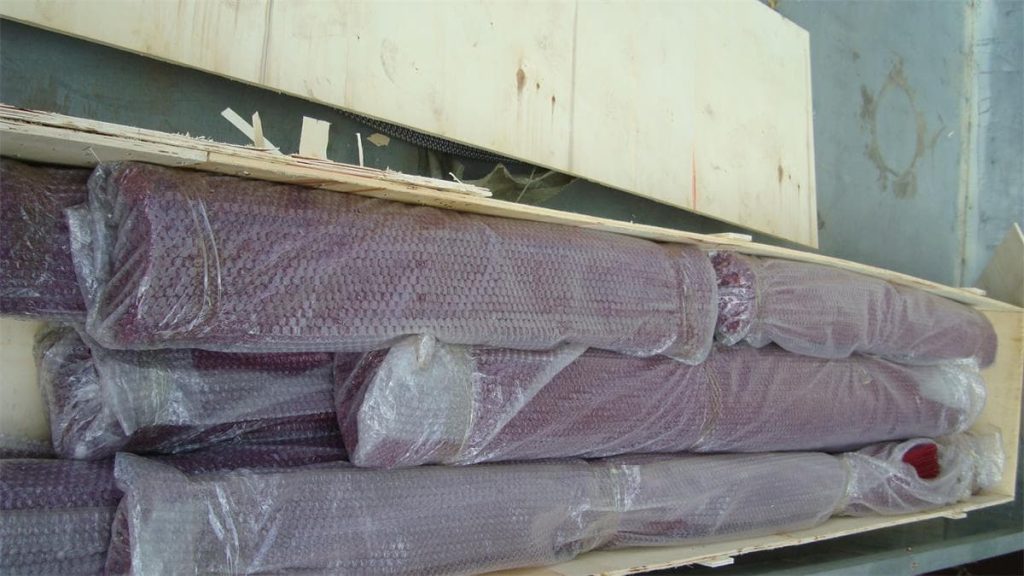

Packing Details of Metal Coil Curtain

Usually, the metal mesh curtain is rolled into rolls and wrapped in waterproof paper or plastic film, and then packed in wooden boxes customized according to the length of the metal mesh curtain.
