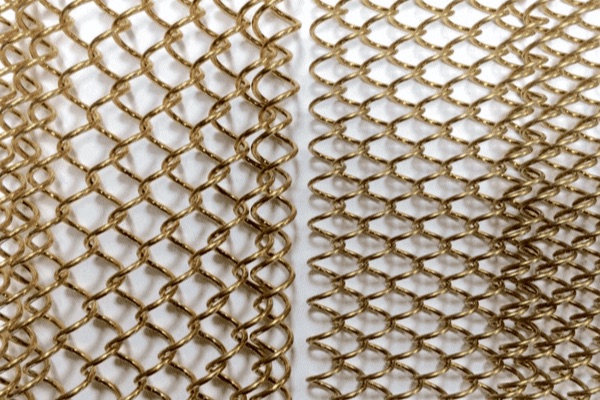

Metal Mesh Curtains
Decorative wire mesh is also named Architecture Meshes, Decorative woven mesh, metal fabric, is weaved with high-quality stainless steel wire, aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative product in the modern industrial and architectural applications. Available in many different patterns, each with its own characteristics and optical effect.

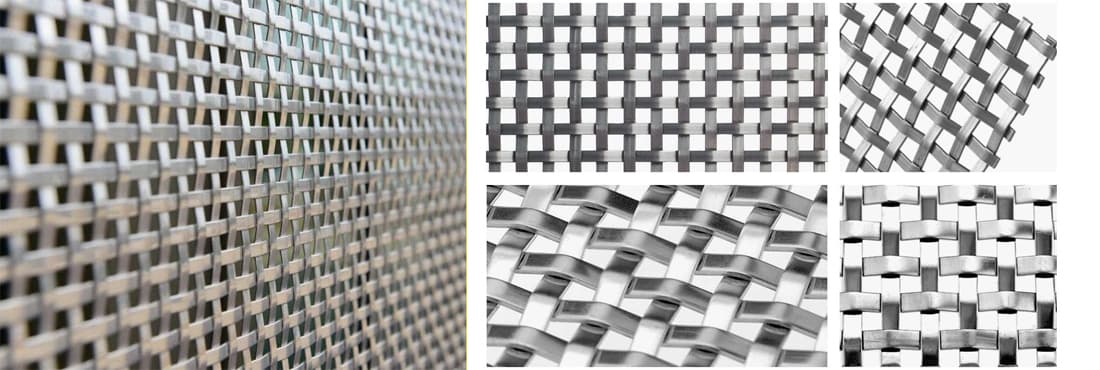

DWM-01：Flat Woven Mesh
| Material ： | Aluminum | Open area ： | 17.4% |
| Warp wire： | 1.5*7mm | Weft wire： | 1.5*7mm |
| Warp wire spacing： | 12mm | Weft wire spacing： | 12mm |
| Weight： | 14.0kg/m2 | Thickness： | 3mm |

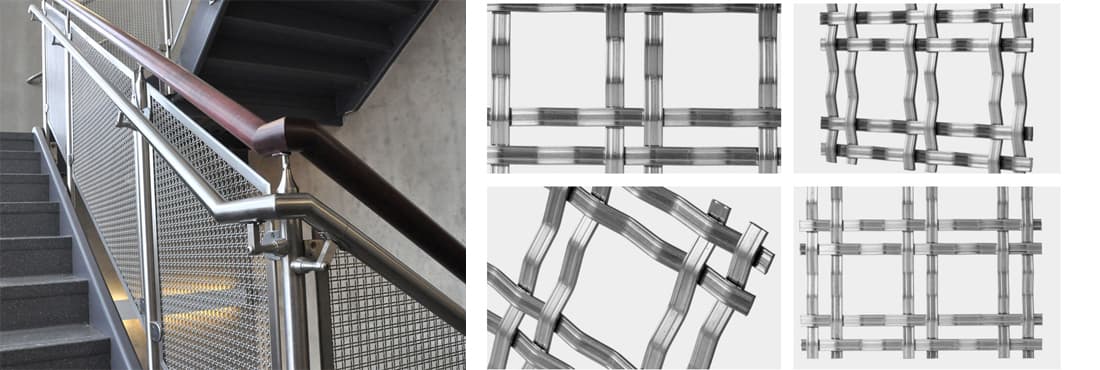

DWM-02：Flat Wire Decorative Mesh
| Material ： | Stainless steel | Open area ： | 66.2% |
| Warp wire： | 1*2.5mm | Weft wire： | 1z*2.5mm |
| Warp wire spacing： | 24mm | Weft wire spacing： | 24mm |
| Weight： | 3.43kg/m2 | Thickness： | 2.5mm |

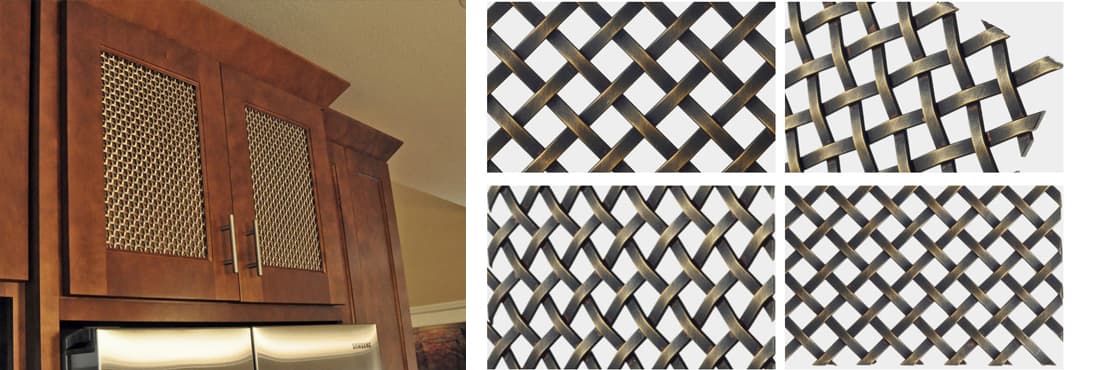

DWM-03：Diamond Woven Mesh
| Material ： | Stainless steel | Open area ： | 42.2% |
| Warp wire： | 1.5*3.5mm | Weft wire： | 1.5*3.5mm |
| Warp wire spacing： | 10mm | Weft wire spacing： | 10mm |
| Weight： | 8.6kg/m2 | Thickness： | 3mm |

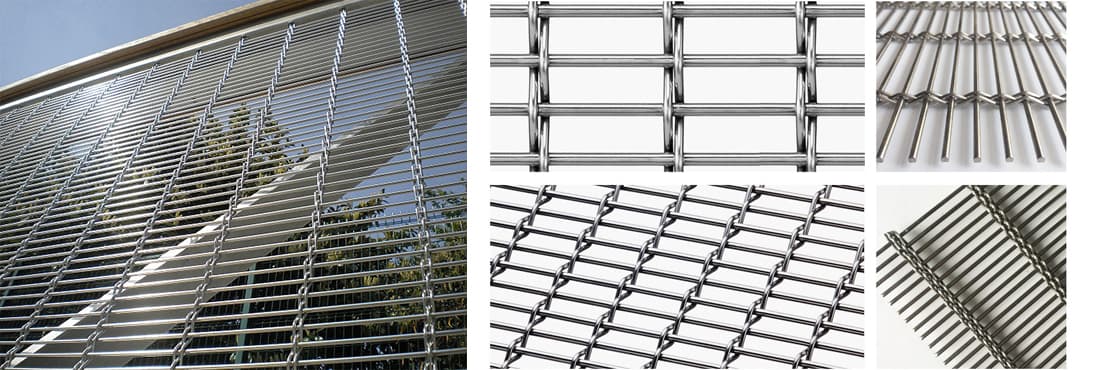

DWM-04：Partition Woven Mesh
| Material ： | Stainless steel | Open area ： | 43% |
| Warp wire： | 1.2mm*2 | Weft wire： | 2mm |
| Warp wire spacing： | 17.5mm | Weft wire spacing： | 3.8mm |
| Weight： | 7.0kg/m2 | Thickness： | 3.3mm |

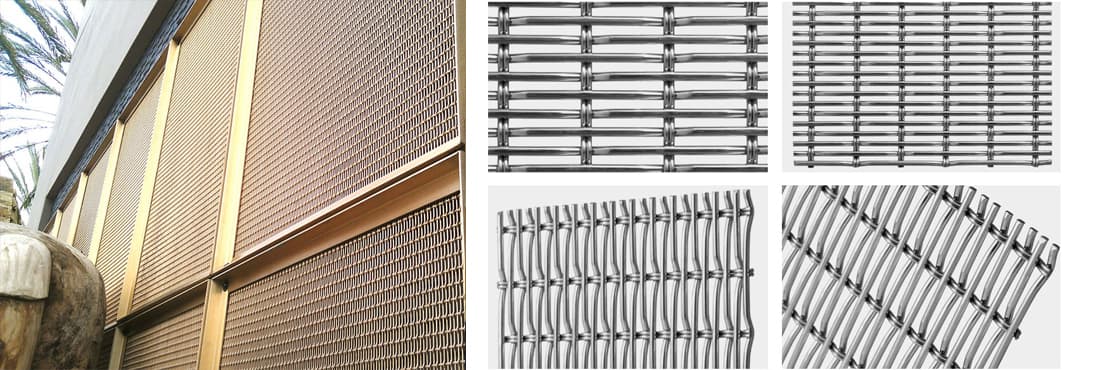

DWM-05：Wall Metal Mesh
| Material ： | Stainless steel | Open area ： | 31% |
| Warp wire： | 1.2mm*2 | Weft wire： | 2mm |
| Warp wire spacing： | 22.5mm | Weft wire spacing： | 5mm |
| Weight： | 8.75kg/m2 | Thickness： | 2.5mm |

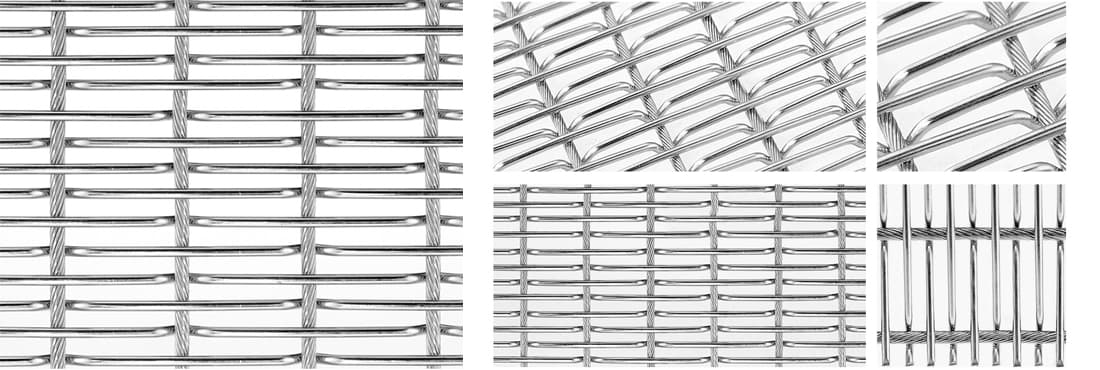

DWM-06：Protective Steel Wire Mesh
| Material ： | Stainless steel | Rope distance： | 2.5mm-80mm |
| Rod diameter： | 0.5mm-3mm | Rod spacing： | 1.6mm-11mm |

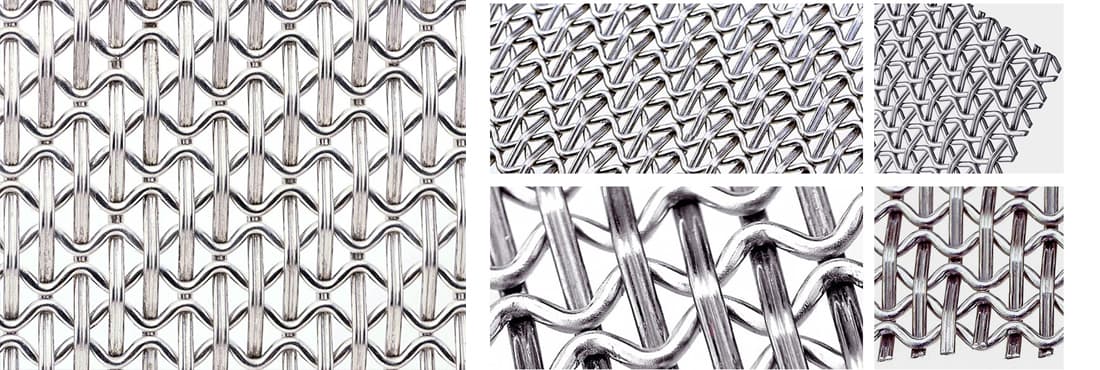

DWM-07：Architectural Mesh Facades
| Material ： | Stainless steel | Warp Diameter: | 1.2mm x 2 |
| Weight: | 6.44kg/㎡ | Warp Pitch: | 17.5mm |
| Weft Diameter: | 2mm | Weft Pitch: | 6mm |
Application
Due to their multiple functional and aesthetic qualities, the decorative wire mesh is suitable for various applications In architecture and interior design, metal fabrics are used for decoration as:
- Wire mesh facades;
- Shade screens;
- Architecture ceilings;
- Metal draperies for walls, partition and isolation screens;
- Staircases isolation screen, elevator cabins screen;
- Floor covering fabric
